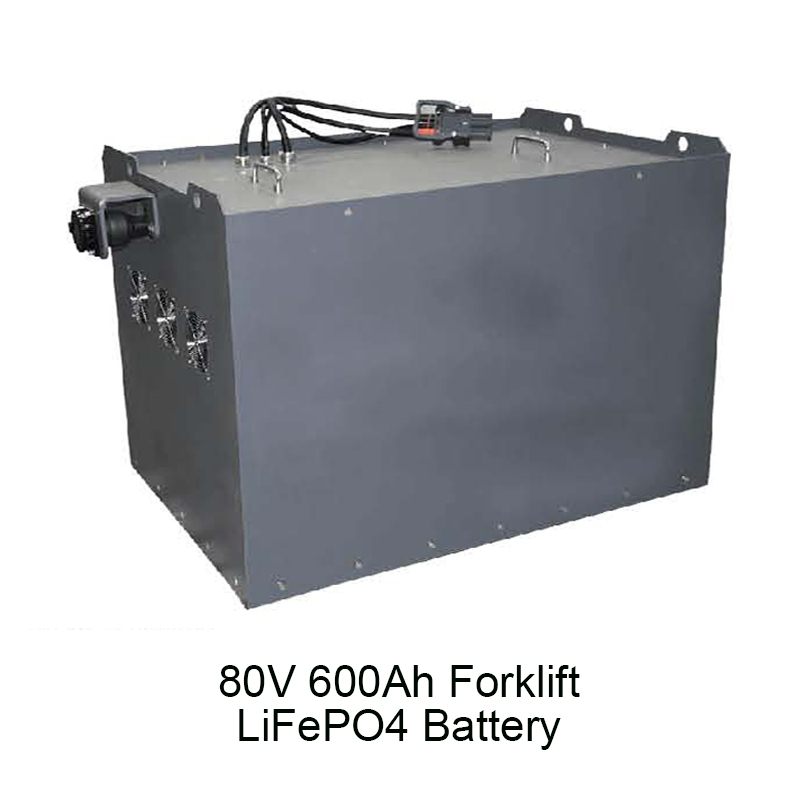

80V 600Ah LiFePO4 Forklift battery

Used as DC power sources for equipment such as forklifts, tractors, handling trucks, and underground mining locomotives, and are widely used in airports, stations, ports, vegetable and fruit markets, as well as industrial and mining enterprise warehouses.

Nominal capacity: 600Ah

Rated voltage: 80V

EqPb (Equals Lead acid battery): 720Ah

Communication mode: CAN/RS485/Blue Tooth(Optional)

Charge method: CC/CV

Send Email:

Products DETAILS

80V 600Ah LiFePO4 Forklift battery

Electrical Specification:
Nominal capacity: 600Ah
Rated voltage: 80V
Self-discharge: <3% per month
Cycle life: >2000 (at 0.5C discharge, 25°C)
EqPb (Equals Lead acid battery): 480Ah
Communication mode: CAN/RS485 (Optional)

Charge & Discharge Specification:
Charge method: CC/CV
Charge voltage: 91.25V max
Maximum continuous charging current: 200A
Continuous discharge current: 400A
Discharge peak current: 800A

Mechanical Specification:
Dimensions (LxWxH): 1028*710*715 (or customized design)
Weight: 650 kg / 1433lbs (or customized design)
Case material: Commercial Grade Steel
Ingress protection: IP65
Cell type / Chemistry:  Prismatic – LiFePO4
Group mode: 25S3P(or 25S4P)

Temperature Specification:
Charge temperature:  0°C to 50°C / 32°F to 131°F
Discharge temperature:  -20°C to 55°C / -4°F to 131°F
Storage temperature:  0°C to 40°C / 32°F to 113°F
Preheating temperature: -20°C to 5°C / -4°F to 41°F
