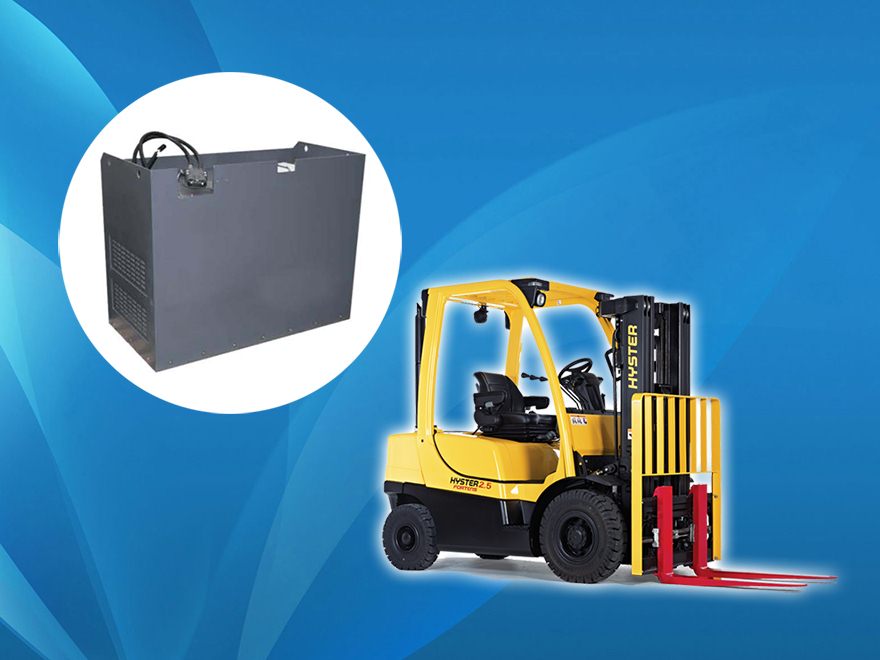

72V 760Ah LiFePO4 Forklift battery

Used as DC power sources for equipment such as forklifts, tractors, handling trucks, and underground mining locomotives, and are widely used in airports, stations, ports, vegetable and fruit markets, as well as industrial and mining enterprise warehouses.

Nominal capacity: 760Ah

Rated voltage: 73.6V

EqPb (Equals Lead acid battery): 912Ah

Communication mode: CAN/RS485/Blue Tooth(Optional)

Charge method: CC/CV

Send Email:

Products DETAILS

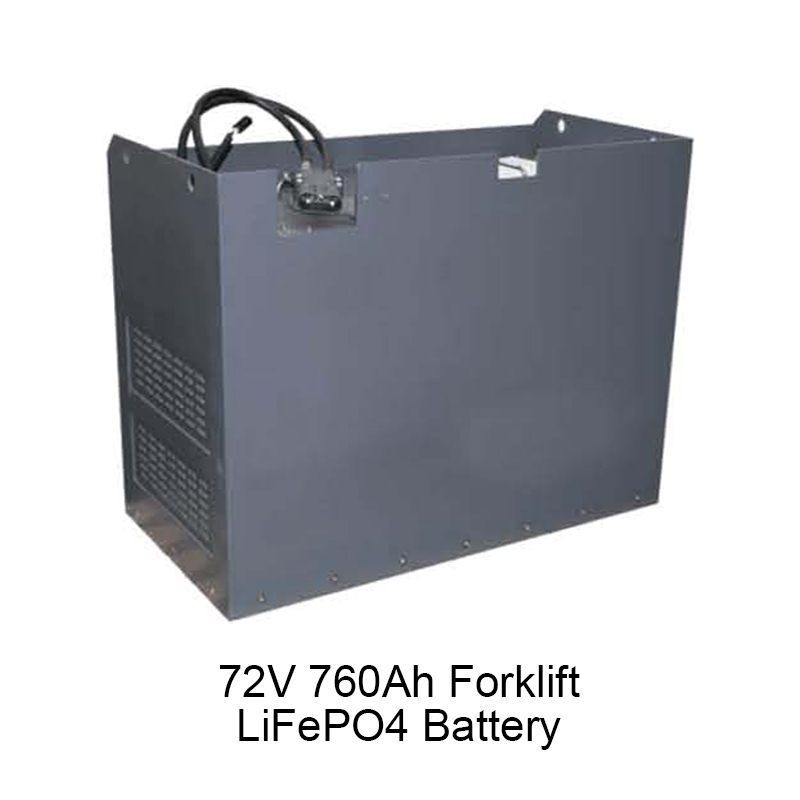

72V 760Ah LiFePO4 Forklift battery


Electrical Specification:
Nominal capacity: 760Ah
Rated voltage: 73.6V
Self-discharge: <3% per month
Cycle life: >2000 (at 0.5C discharge, 25°C)
EqPb (Equals Lead acid battery): 912Ah
Communication mode: CAN/RS485 (Optional)

Charge & Discharge Specification:
Charge method: CC/CV
Charge voltage: 83.95V max
Maximum continuous charging current: 200A
Continuous discharge current: 400A
Discharge peak current: 800A

Mechanical Specification:
Dimensions (LxWxH): 1028*710*715mm (or customized design)
Weight: 1450 kg / 3045lbs (or customized design)
Case material: Commercial Grade Steel
Ingress protection: IP65
Cell type / Chemistry:  Prismatic – LiFePO4
Group mode: 23S5P

Temperature Specification:
Charge temperature:  0°C to 50°C / 32°F to 131°F
Discharge temperature:  -20°C to 55°C / -4°F to 131°F
Storage temperature:  0°C to 40°C / 32°F to 113°F
Preheating temperature: -20°C to 5°C / -4°F to 41°F
