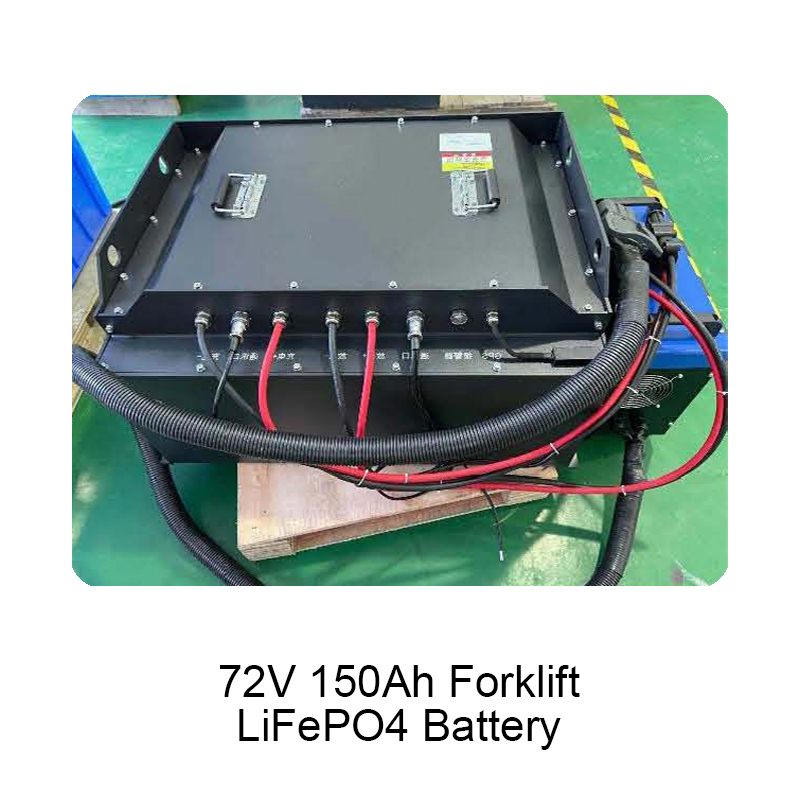

72V 150Ah LiFePO4 Forklift battery

Used as DC power sources for equipment such as forklifts, tractors, handling trucks, and underground mining locomotives, and are widely used in airports, stations, ports, vegetable and fruit markets, as well as industrial and mining enterprise warehouses.

Nominal capacity: 150Ah

Rated voltage:76.8V

EqPb (Equals Lead acid battery): 180Ah

Communication mode: CAN/RS485/Blue Tooth(Optional)

Charge method: CC/CV

Send Email:

Products DETAILS

72V 150Ah LiFePO4 Forklift battery

Electrical Specification:
Nominal capacity: 150Ah
Rated voltage: 76.8V
Self-discharge: <3% per month
Cycle life: >2000 (at 0.5C discharge, 25°C)
EqPb (Equals Lead acid battery): 180Ah
Communication mode: CAN/RS485 (Optional)

Charge & Discharge Specification:
Charge method: CC/CV
Charge voltage: 87.6V max
Maximum continuous charging current: 75 A
Continuous discharge current: 150A
Discharge peak current: 450A

Mechanical Specification:
Dimensions (LxWxH): 830*560*420mm (or customized design)
Weight: customized design
Case material: Commercial Grade Steel
Ingress protection: IP65
Cell type / Chemistry:  Prismatic – LiFePO4
Group mode: 24S1P

Temperature Specification:
Charge temperature:  0°C to 50°C / 32°F to 131°F
Discharge temperature:  -20°C to 55°C / -4°F to 131°F
Storage temperature:  0°C to 40°C / 32°F to 113°F
Preheating temperature: -20°C to 5°C / -4°F to 41°F
