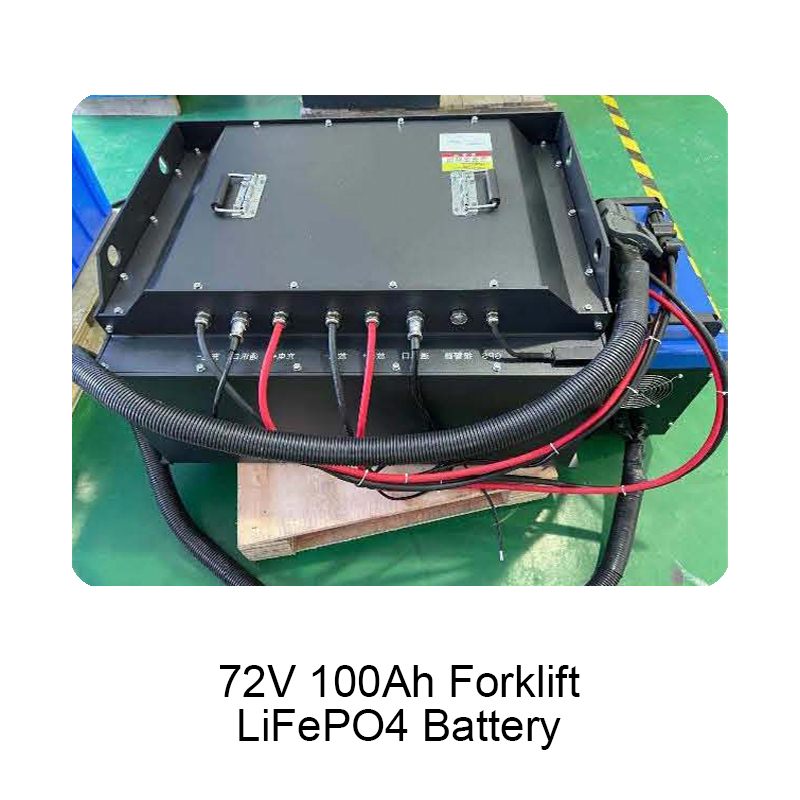

72V 100Ah LiFePO4 Forklift battery

Used as DC power sources for equipment such as forklifts, tractors, handling trucks, and underground mining locomotives, and are widely used in airports, stations, ports, vegetable and fruit markets, as well as industrial and mining enterprise warehouses.

Nominal capacity: 100Ah

Rated voltage:76.8V

EqPb (Equals Lead acid battery): 120Ah

Communication mode: CAN/RS485/Blue Tooth(Optional)

Charge method: CC/CV

Send Email:

Products DETAILS

72V 100Ah LiFePO4 Forklift battery

Electrical Specification:
Nominal capacity: 100Ah
Rated voltage: 76.8V
Self-discharge: <3% per month
Cycle life: >2000 (at 0.5C discharge, 25°C)
EqPb (Equals Lead acid battery): 120Ah
Communication mode: CAN/RS485 (Optional)

Charge & Discharge Specification:
Charge method: CC/CV
Charge voltage: 87.6V max
Maximum continuous charging current: 50A
Continuous discharge current: 100A
Discharge peak current: 300A

Mechanical Specification:
Dimensions (LxWxH): 830*560*420mm (or customized design)
Weight: customized design
Case material: Commercial Grade Steel
Ingress protection: IP65
Cell type / Chemistry:  Prismatic – LiFePO4
Group mode: 24S1P

Temperature Specification:
Charge temperature:  0°C to 50°C / 32°F to 131°F
Discharge temperature:  -20°C to 55°C / -4°F to 131°F
Storage temperature:  0°C to 40°C / 32°F to 113°F
Preheating temperature: -20°C to 5°C / -4°F to 41°F
