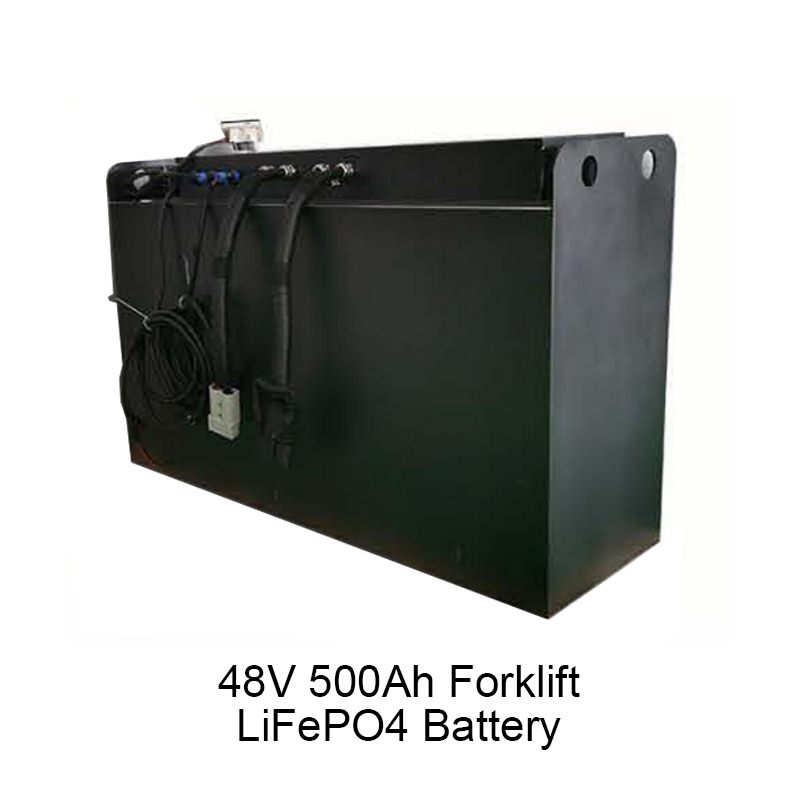

48V 500Ah LiFePO4 Forklift battery

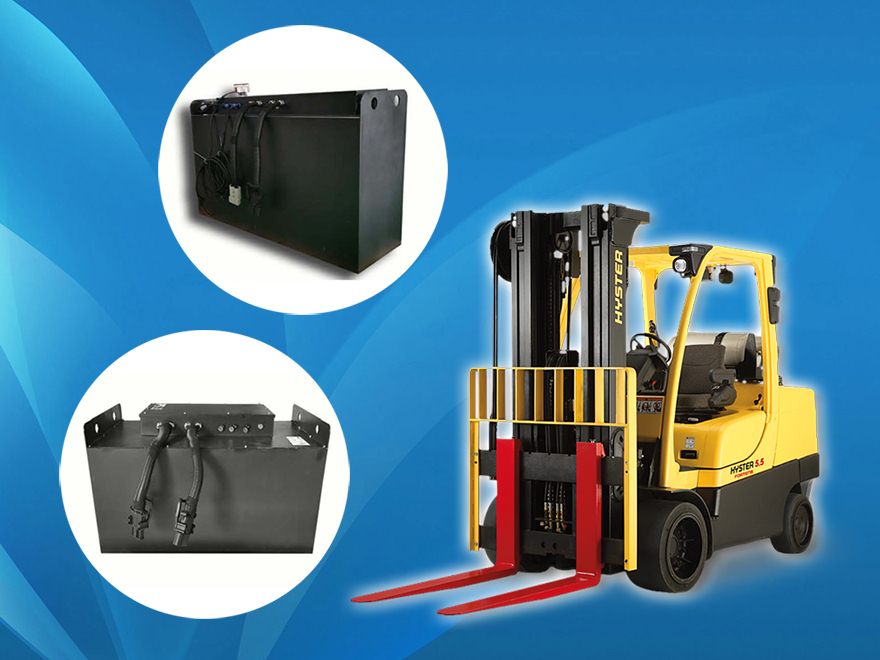

Used as DC power sources for equipment such as forklifts, tractors, handling trucks, and underground mining locomotives, and are widely used in airports, stations, ports, vegetable and fruit markets, as well as industrial and mining enterprise warehouses.

Nominal capacity: 500Ah

Rated voltage: 51.2V

EqPb (Equals Lead acid battery): 600Ah

Communication mode: CAN/RS485/Blue Tooth(Optional)

Charge method: CC/CV

Send Email:

Products DETAILS

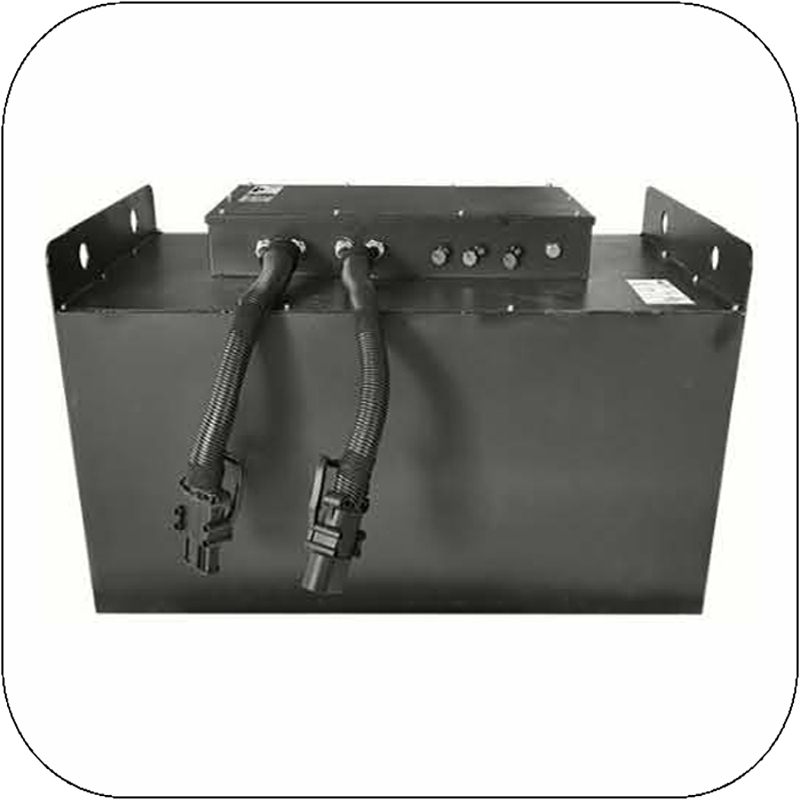

48V 500Ah LiFePO4 Forklift battery


Electrical Specification:
Nominal capacity: 500Ah
Rated voltage: 51.2V
Self-discharge: <3% per month
Cycle life: >2000 (at 1C discharge, 100% DoD)
EqPb (Equals Lead acid battery): 600Ah
Communication mode: CAN/RS485/Blue Tooth(Optional)

Charge & Discharge Specification:
Charge method: CC/CV
Charge voltage: 58.4V max
Maximum continuous charging current: 250A
Continuous discharge current: 400A
Discharge peak current: 800A

Mechanical Specification:
Dimensions (LxWxH): customized design
Weight: customized design
Case material: Commercial Grade Steel
Ingress protection: IP65
Cell type / Chemistry:  Prismatic – LiFePO4
Group mode: 16S1P/16S/2P

Temperature Specification:
Charge temperature:  0°C to 50°C / 32°F to 131°F
Discharge temperature:  -20°C to 55°C / -4°F to 131°F
Storage temperature:  0°C to 40°C / 32°F to 113°F
Preheating temperature: -20°C to 5°C / -4°F to 41°F
