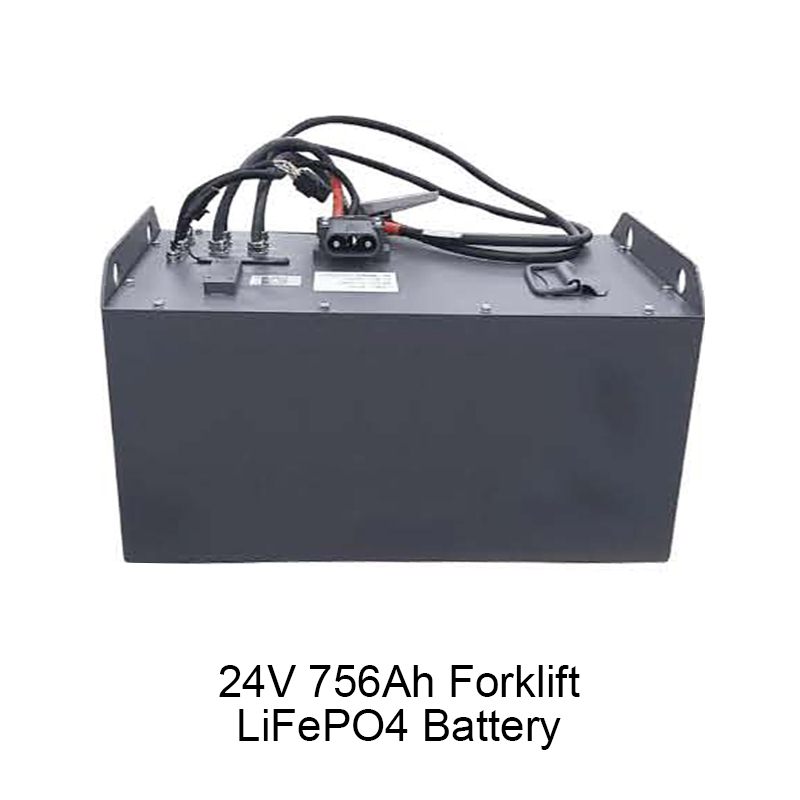

24V 756Ah LiFePO4 Forklift battery

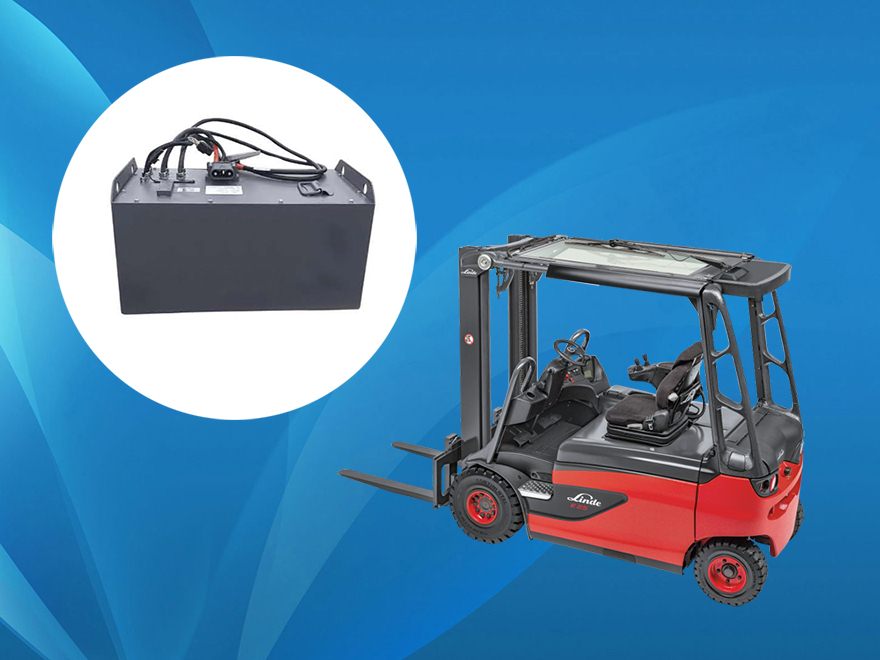

Used as DC power sources for equipment such as forklifts, tractors, handling trucks, and underground mining locomotives, and are widely used in airports, stations, ports, vegetable and fruit markets, as well as industrial and mining enterprise warehouses.

Nominal capacity: 756Ah

Rated voltage: 25.6V

EqPb (Equals Lead acid battery): 907Ah

Communication mode: CAN/RS485/Blue Tooth(Optional)

Charge method: CC/CV

Send Email:

Products DETAILS

24V 756Ah LiFePO4 Forklift battery

Electrical Specification:
Nominal capacity: 756Ah
Rated voltage: 25.6V
Self-discharge: <3% per month
Cycle life: >3000 (at 1C discharge, 100% DoD)
EqPb (Equals Lead acid battery): 907Ah
Communication mode: CAN/RS485/Blue Tooth(Optional)

Charge & Discharge Specification:
Charge method: CC/CV
Charge voltage: 29.2V max
Maximum continuous charging current: 200A
Continuous discharge current: 200A
Discharge peak current: 600A

Mechanical Specification:
Dimensions (LxWxH): 340*790*660mm
Weight: 450 kg / 992lbs
Case material: Commercial Grade Steel
Ingress protection: IP65
Cell type / Chemistry:  Prismatic – LiFePO4
Group mode: 8S4P

Temperature Specification:
Charge temperature:  0°C to 50°C / 32°F to 131°F
Discharge temperature:  -20°C to 55°C / -4°F to 131°F
Storage temperature:  0°C to 40°C / 32°F to 113°F
Preheating temperature: -20°C to 5°C / -4°F to 41°F
